Relate

Correlate. Visualise. Analyse

Relate is a correlative software package optimised to work with multimodal microscopy datasets, including Electron Microscopy (EM), Energy-dispersive X-ray spectroscopy (EDS), Electron Backscatter Diffraction (EBSD), Raman spectroscopy, Light microscopy and Atomic Force Microscopy (AFM). It provides the tools you need to correlate data from different microscopes, visualise multi-layered data in 2D and 3D, and conduct correlative analyses.

Analysing and correlating data from different modalities is a common challenge for users of multiple imaging systems. Often, correlating images and visualising the correlative data is a complicated process, including different software solutions and file conversions.

AFM Topography

AFM Topography + EDS

Circuit board AFM topography 3D display in Relate

3d view of correlated images from afm and eds displaying topographical and chemical information simultaneously

Relate can import datasets from different modalities and file formats, correlate them and generate multi-layered images. With Relate, the visualisation of correlative microscopy is interactive, with different 2D and 3D rendering options within a single document.

Request pricing

Correlate

Import data from AZtec using the HDF (H5oina) file format
Import data from different microscope modalities (SEM, TEM, AFM, Raman, Light microscopy)
Correlate multimodal data using intuitive image overlays and image matching tools
Produce combined multimodal datasets

Visualise

2D display of multi-layered data

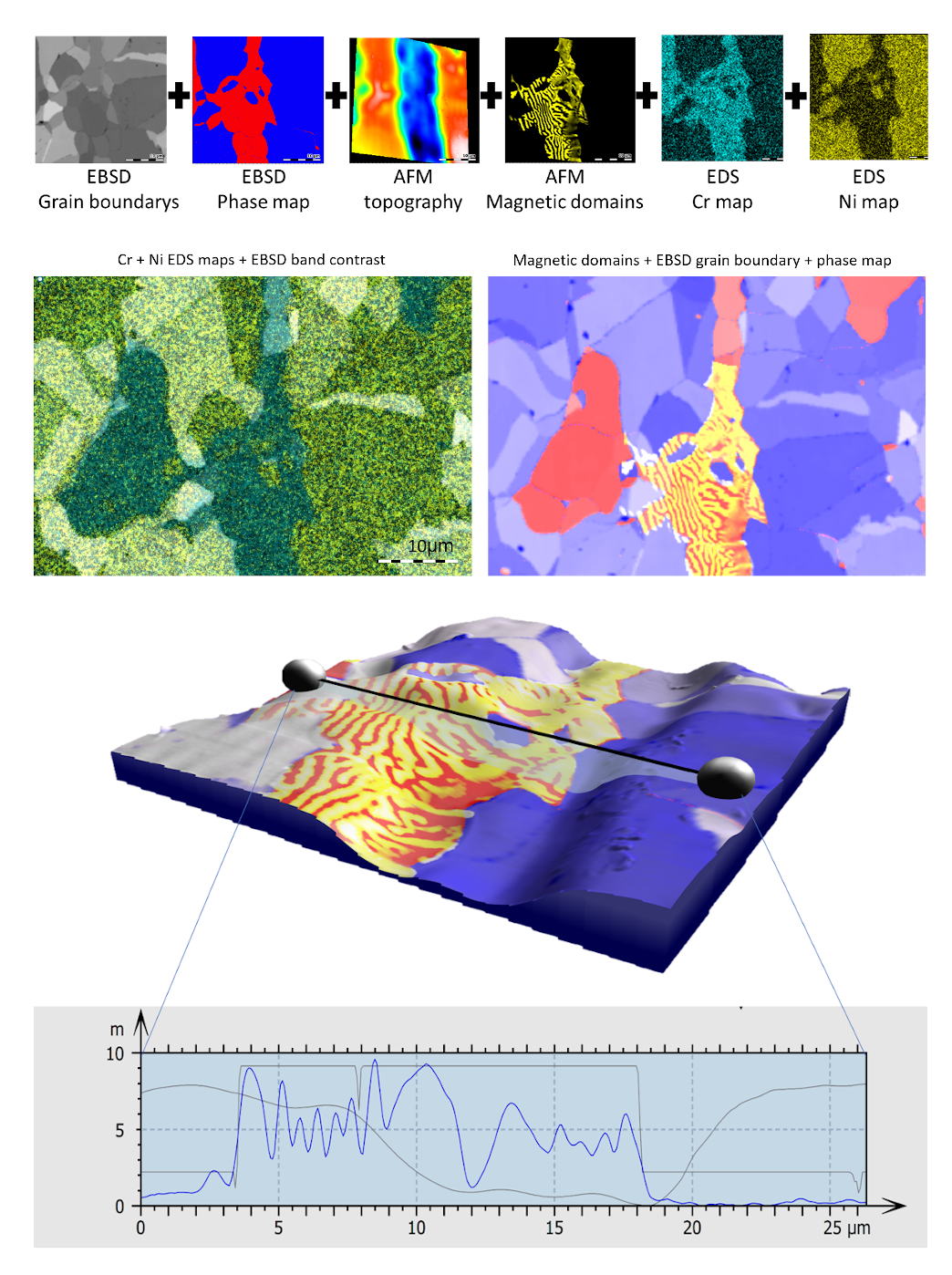

3D visualisation of image files properties (e.g. topography combined with AFM material properties, EM images with correlative LM, Raman, EDS & EBSD map overlays)
Customisation of colour palettes, data overlays, image rendering options and document display
Export images and animations

Analyse

Generate multilayer profiles (cross section) views of 3D topographical displays
Measure and quantify data across multiple layers
Analyse areas via data thresholding using metadata information including amount of X-ray counts, phase maps, height, or other material properties using measurement tools
Select an extensive range of measurement parameters
Create analysis templates for high throughput reporting
Export analytical data to text or CSV files

Download brochure

Features	Relate Software	Stereoscopy Option	Image Analysis Option
Import HDF5 data stacks, IBW (Asylum Research AFM) files and common image formats (e.g. TIFF, PNG, JPEG)	✔	N/A	N/A
Correlation of data stacks and images	✔	N/A	N/A
Multiple layer 2D and 3D data visualisation	✔	N/A	N/A
Display optimisation (e.g. editable palettes, lighting, rescaling, rotation, rendering options)	✔	N/A	N/A
Image rendering, 3D animation and video export	✔	N/A	N/A
Profile extraction from 2D and 3D data	✔	N/A	N/A
Quantification of threshold-based ROI selection	✔	N/A	N/A
Select and export quantitative correlated data from ROI	✔	N/A	N/A
Document workflows and construct template	✔	N/A	N/A
3D reconstruction from stereoscopic SEM images	✘	✔	✘
3D Reconstruction from single EM and 4-quadrent BSE images	✘	✔	✘
EM image colourisation	✘	✔	✘
Import custom scripting from MATLAB	✘	✔	✘
Texture analysis	✘	✘	✔
Image segmentation by threshold or morphological filters	✘	✘	✔
Statistical analysis of morphology	✘	✘	✔

System Requirements
Operating systems	Windows 10, 64 bit (recent version still supported by Microsoft) Windows 11, 64 bit
Recommended processor	For standard use: multi-core processor For intensive use: multiple multi-core processors
Disk	Minimum: 1 GB of HDD free space
RAM	Minimum: 4 GB Recommended for standard use: 8 GB Recommended for intensive use: 32 GB
Graphics	Minimum: OpenGL 2.0 or Direct X 9.0c support Recommended: Dedicated GPU 1 GB
Screen resolution	Minimum: 1280×768 Recommended: Full HD
Other	1 free USB port if software use is protected by a “physical” key (USB dongle) Software-based security keys (code delivered via email) are also available (subject to conditions); the license is attached to one PC only
